Quick Details

  • Condition: New
  • Type: Induction Furnace
  • Usage: Melting Furnace
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: WZSM
  • Model Number: BF-15
  • Voltage: 3*380V or 3*220V
  • Power(W): 15KW
  • Dimension(L*W*H): 630*720*1660
  • Weight: 366KG
  • Certification: CE
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Supply scope: Generator Box+ Capacitor Box+ Smelter Unit+Water cooled cable
  • Tilting: Electrical Motor Titling(10 speed level from low to fast)
  • Max Input Current: 23A
  • Crucible: Graphite or SiC
  • Melting Capacity: 10KG~40KG for Gold,Copper
  • Crucible Install: Quick install or uninstall
  • Remote Control: Yes(Optional)
  • PLC Control: Yes (Optional)
  • Water Cooled Cable: 2.5 meters long(default)
  • Package: Standard plywood Box for exporting

Packaging & Delivery

Packaging Details Standard export packing in Patent designed chain tilting gold melting furnace/machine/pot/oven
Delivery Time Goods in stock





Feature



 Patent designed chain tilting gold melting furnace/equipment/machine/pot/oven



1. IGBT Technology
2. All functions are microcomputer controlled
3. PLC touch screen control panel (7" Siemens)
4. Crucible is quickly installed and replaced.
5. Solid-state generator technology, high efficiency
6. high reliability & stability
7. Self-diagnostics and alarm system
8. Stainless steel construction
9. Interlock system for a safer operation
10. Electric Motor tilting device
11. Modular design, ease of maintaining and repairing
12. Extremely quiet operation


Optional Device:
1. Control of the temperature with thermocouple (option) or optical sensor(option)
2. Gas Torch to prevent oxidization
3. Remote Control Panel (default 5 meters)



Product Description



The best high quality gold melting furnace

• Lower power consumption, the IGBT technology saves 15-30% energy than KGPS,100% full load.
• Installation and maintenance are convenient, it can be finished by video or our manual guide. So it
reduces the cost which you need pay for the engineers abroad for installation.
• The occupied land for the gold melting furnace is less than 1 square meter.
• The crucible replacement is very easy for different metal material.
• 24 hours constant working will meet your long time melting.
• Low pollution, low noise.
• Gold melting induction furnace with multi-protective functions to over-voltage, over-current, less water,
over-heating with low fault rate and is safe and reliable.



  Power control panel











PLC control (Optional part)

1. All functions over micro-computer can be controlled by touch screen.
2. Digital power adjustment and indicator.
3. High efficiency using a solid-state generator.
4. Self-diagnostics system.
5. Stainless steel construction.
6. Control of the temperature (option) with thermocouple or optical sensor.
7. Extremely quiet operation.



Furnace structure features



                   Please link our website: http://www.cdoinduction.com/gold-melting-furnace/

to get more useful information



Skype : mandymeina
 Cell phone : 0086 15168765707
 Please do not hesitate to contact us !!!

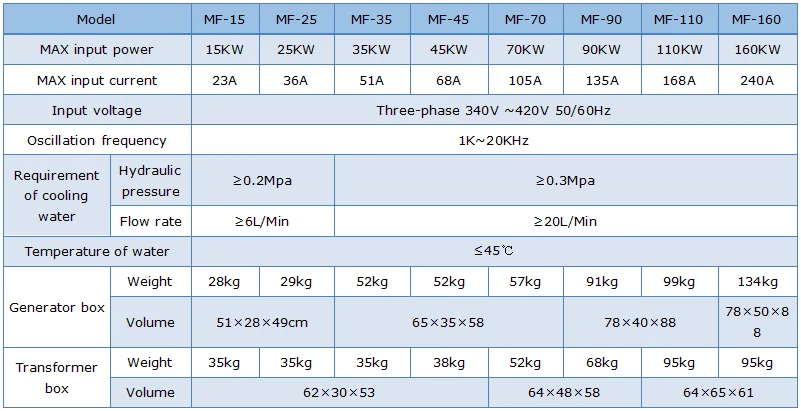

Technical Parameter





Melting capacity parameters






Package
